• DESCRIPTION



- Gazebo frame in aluminium, light and extremely resistant

- 4 adjustable heights from 220 to 250 cm

- Central height from 315 to 350cm

- Spring pin locking system with guying kit

- Perfect connection between pieces

- Also available in dimensions 3x4,5m, 4x4, 4x8, 5x5 and 3x6m

- Delivered in a cardboard box with a pouch carrying bag and a guying kit

- Always use the guying kit when installing the product

- Always store the product in a dry place

- The roof and walls are sold separately: roof and walls treated anti-UV and fireproof M2

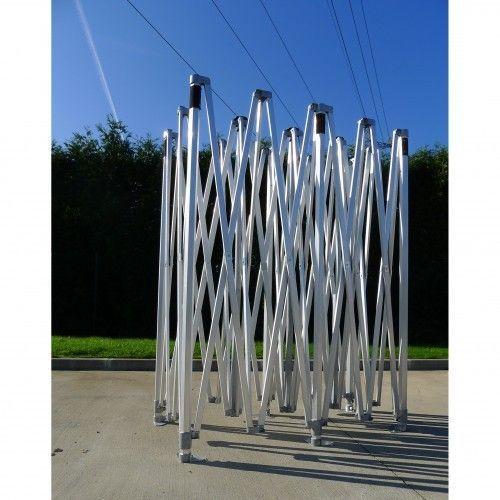

• FINISHING ARMATURE



- Hexagonal posts in reinforced anodized aluminum

- Posts 50 / 55mm in diameter and 2mm thick

- Cross-brace 35x18x1.8mm

- Connection pieces in Aluminum and cast aluminum

- Base of galvanized steel legs (140x140mm and 3mm thick)



Unfolded dimensions (Lxlxh)

400 x 800 x 0 cm

Folded dimensions (L x l x h)

210 x 54 x 34 cm

Weight

67 kg

Pieces

  1 pcs

Package

211 x 56 x 35 cm

Weight of the package

75kg

Quantity per pallet

6

Capacity container - 20’

66

Capacity container - 40'

136

Capacity container - 40'HC'

161
